Fiat 500 Brake Warning Light: Quick Answer
If your Fiat 500 brake warning light is red and stays on after starting the engine, do not ignore it.
First, make sure the handbrake is completely released. On Fiat 500 models, the red brake warning can indicate an engaged handbrake or low brake fluid. Fiat documentation says that if the warning comes on while travelling, the vehicle should be stopped and the cause checked.
Quick answers:
- Brake light goes off after releasing the handbrake: Usually normal.
- Brake light stays on with handbrake released: Check the brake fluid and arrange an inspection.
- Brake fluid is low: Do not simply ignore it. A leak can be responsible.
- Brake light + ABS light: Treat it as more urgent and have the braking system checked.
- Soft or sinking brake pedal: Stop driving.
- Red brake light while driving: Stop safely and investigate before continuing.
For other Fiat 500 dashboard symbols, see our complete Fiat 500 Warning Lights guide.
What Does the Fiat 500 Brake Warning Light Mean?

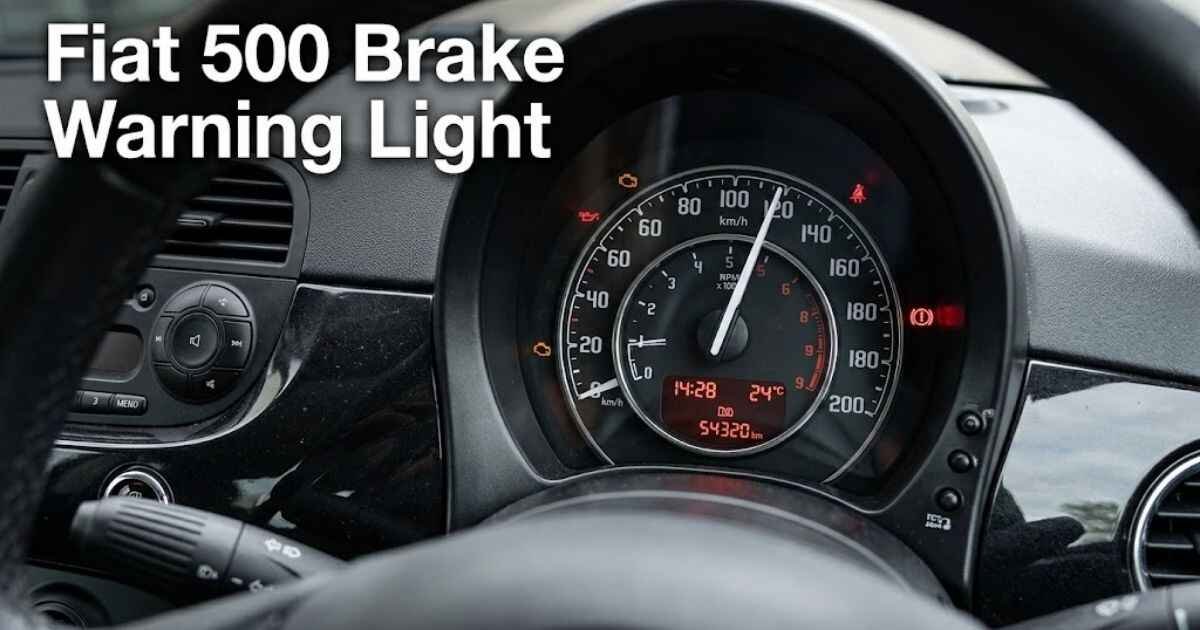

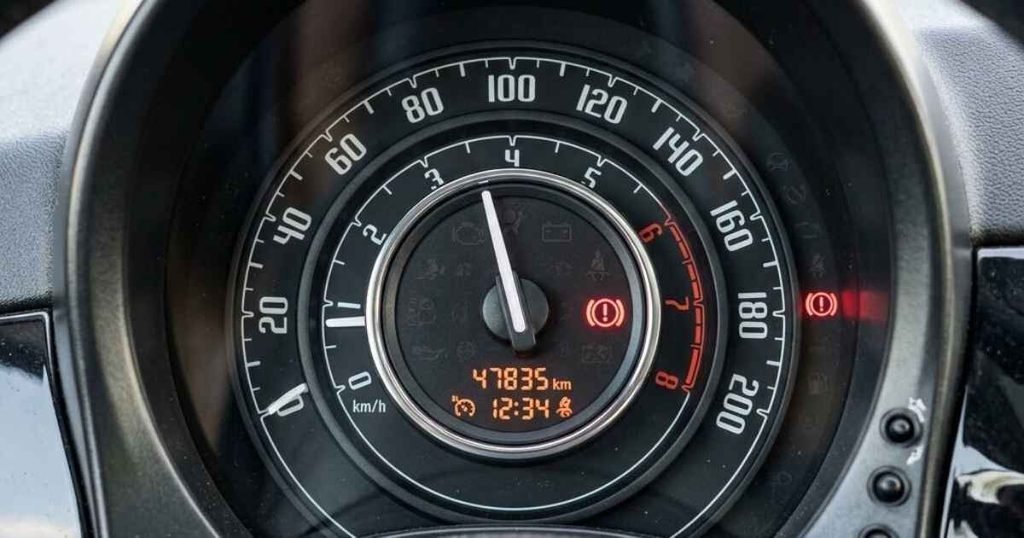

The Fiat 500 brake warning light is normally a red circle with an exclamation mark. Depending on the Fiat 500 generation and market, it can indicate that the handbrake is engaged or that the brake fluid level is too low.
The light normally comes on when you switch the ignition on and should go out after the startup check. If it remains illuminated after the engine starts, you need to find out why.
Fiat’s official owner documentation specifically identifies the red warning as low brake fluid or handbrake engaged. It also warns that low brake fluid can result from a possible leak in the brake circuit.
The important point is simple:
A persistent red brake warning light is not a maintenance reminder. It can indicate a problem with a safety-critical system.
Can You Drive With the Fiat 500 Brake Warning Light On?
Not until you know why it is on.
If you accidentally left the handbrake partially engaged, release it completely and check whether the warning disappears.
If the light remains on, stop somewhere safe and check the brake fluid according to your owner’s handbook.
Fiat’s documentation instructs drivers to stop the vehicle if the brake warning appears while travelling. The 2019 US Fiat 500/500C owner’s manual is even more direct, warning that driving with the red brake light on can be dangerous because part of the brake system may have failed and stopping distance can increase.
Stop driving if you notice:
- A soft or spongy brake pedal
- A pedal that sinks unusually far
- Reduced braking performance
- Brake fluid leaking
- The red brake light and ABS light appearing together
- The vehicle pulling strongly when braking
- Grinding or severe brake noises
Drive-or-stop verdict: If the handbrake is released and the red warning remains on, do not continue normal driving until the cause is checked.
Fiat 500 Brake Warning Light After Releasing the Handbrake
This is the first thing to check because it can be completely normal.
Release the handbrake fully and look at the dashboard.
If the warning disappears, the handbrake was likely the reason for the light.
If it stays on, don’t assume the sensor is faulty. Check the brake fluid level and look for any obvious signs of leakage.
Fiat’s documentation says the warning should switch off after the handbrake is released. If it stays on, the vehicle should be checked.
Quick answer: Handbrake released + warning still illuminated = investigate the brake system.
Fiat 500 Brake Warning Light but Brake Fluid Is Full
A full brake-fluid reservoir does not automatically mean everything is fine.
If the fluid is at the correct level and the warning remains illuminated, possible causes include a parking-brake switch problem, fluid-level sensor fault, wiring issue, or another brake-system fault.
The exact system depends on your Fiat 500’s model year and equipment, so don’t replace a sensor simply because the reservoir is full.
Instead, have the warning diagnosed.
If another warning appears at the same time, that information is important. For example, our Fiat 500 ABS warning light guide explains why the ABS light changes the situation.
Fiat 500 Brake Warning Light and ABS Light Together
Brake warning + ABS warning is more serious than the brake warning alone.
On applicable Fiat 500 versions, Fiat documentation explains that an Electronic Brake Force Distribution failure can illuminate the Brake Warning Light together with the ABS warning. The manufacturer warns that immediate repair is required for this condition.
If both lights appear:
- Reduce speed safely.
- Avoid hard braking.
- Pull over when it is safe.
- Arrange professional inspection.
Don’t assume the car is safe simply because the brake pedal still feels normal.
If you are actually seeing the amber triangle rather than the red brake symbol, that is a different warning. Our Fiat 500 Amber Triangle Warning Light guide explains what that symbol means and why the accompanying dashboard message matters.
What Should You Check First?
If the Fiat 500 brake warning light has appeared, follow this simple order:
1. Release the handbrake completely.
Check whether the warning disappears.

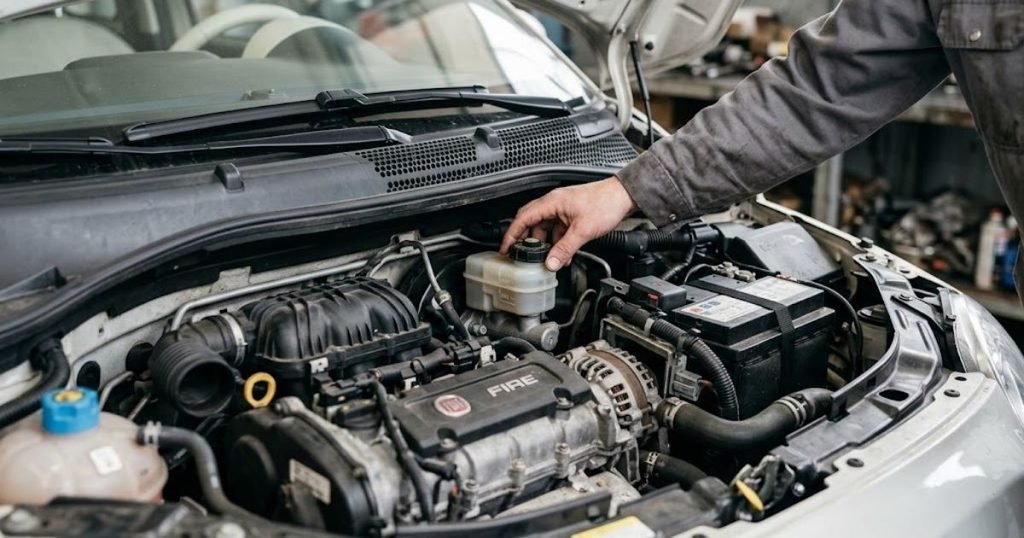

2. Check the brake fluid.
Use the procedure in your owner’s handbook and make sure the vehicle is parked safely on level ground.
3. Look for obvious leaks.
Check around the wheels and underneath the vehicle for fresh fluid.
4. Test the brake pedal carefully.
If it feels soft, spongy, unusually low, or starts sinking, don’t drive.
5. Look for other warning lights.
Especially check for the ABS warning.
6. Read any dashboard message.
Some Fiat 500 versions provide an additional message that can help identify the problem.
If you still cannot determine why the warning is on, professional diagnosis is the safest next step.
For a broader explanation of how different Fiat 500 warnings relate to each other, use the complete Fiat 500 warning lights guide.
Does Low Brake Fluid Always Mean You Just Need More Fluid?
No.
Low brake fluid can be caused by a leak in the brake circuit. Fiat’s owner documentation specifically identifies a possible circuit leak when the fluid falls below the minimum level.
So don’t make this mistake:
Low fluid → add fluid → ignore warning → keep driving.
If the fluid level is repeatedly dropping, the braking system needs to be inspected.
Adding fluid may temporarily bring the level back up, but it does not explain why the level became low in the first place.
Why Does the Fiat 500 Brake Warning Light Come On Sometimes?
An intermittent brake warning should still be investigated.
If the light appears only while turning, braking, going over bumps, or when the vehicle is parked on an incline, make a note of exactly when it happens.
An intermittent warning can be related to fluid level, a switch, sensor, wiring connection, or another system condition.
Even if the light disappears after restarting the car, don’t automatically assume the problem has been fixed.
Fiat 500 Brake Warning Light: When Should You Stop?
The safest rule is simple.
Stop driving if the red brake warning remains on and the handbrake is fully released, particularly if you notice any change in braking performance.
The situation becomes even more urgent if:
- The brake pedal feels soft
- The pedal sinks toward the floor
- Brake fluid is leaking
- ABS and brake warnings appear together
- The car takes longer to stop
- The vehicle becomes difficult to control while braking
A brake warning is not something worth gambling with just to finish a short journey.
Frequently Asked Questions
What does the Fiat 500 brake warning light mean?
It usually indicates an engaged handbrake or low brake fluid, although the exact warning behavior can vary by model year and equipment. Fiat documentation identifies both conditions for the red warning symbol.
Can I drive my Fiat 500 with the brake warning light on?
Only if you have confirmed that the handbrake was simply engaged and the warning goes out after releasing it. If the warning remains on, stop and investigate the cause.
Why is my Fiat 500 brake warning light on when the handbrake is off?
Low brake fluid is one possibility. A sensor, switch, wiring problem, or another brake-system fault can also be responsible. Check the fluid and have the warning diagnosed if it remains.
Why are the Fiat 500 brake and ABS lights on together?
They can indicate a more serious braking-system or EBD fault. Fiat documentation warns that this combination can affect braking performance and requires immediate attention.
Is the Fiat 500 red brake warning light serious?
It can be. If the handbrake is released and the light remains on while driving, treat it as a genuine brake-system warning until the cause has been identified.
The Bottom Line
The Fiat 500 brake warning light can be something as simple as an engaged handbrake, but it can also indicate low brake fluid or a more serious brake-system problem.
Start with the easy check: release the handbrake completely.
If the light stays on, check the brake fluid and pay attention to how the brake pedal feels. If the fluid is low, find out why instead of simply topping it up and forgetting about it.
And if the red brake warning and ABS light appear together, or the brake pedal feels abnormal, stop driving and arrange an inspection.
For the exact warning-light behavior for your specific Fiat 500, use the official Fiat eLUM owner handbook portal. Fiat’s eLUM system lets owners find the appropriate handbook using the vehicle information or VIN.
